Polyimide Tape

Your current position:Home>Product center>HS brand series>Polyimide Tape>Polyimide tape

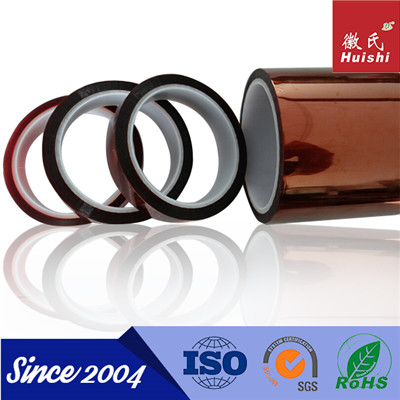

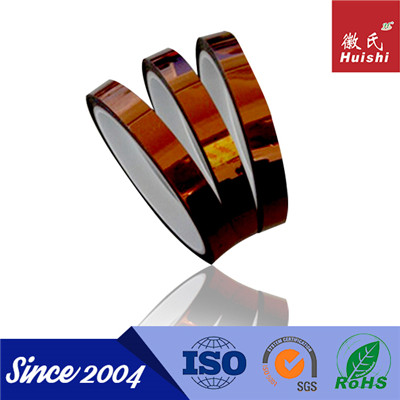

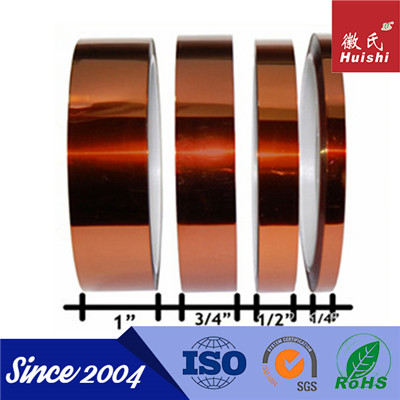

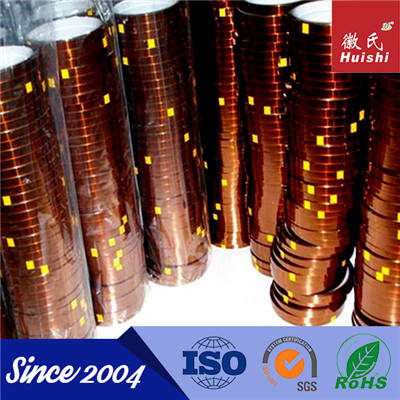

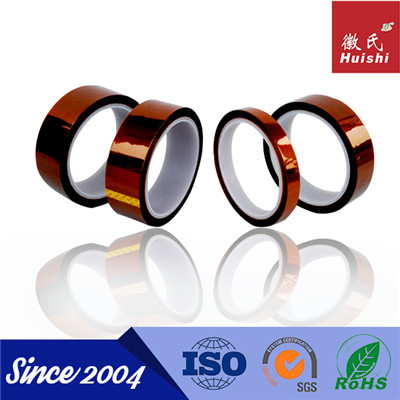

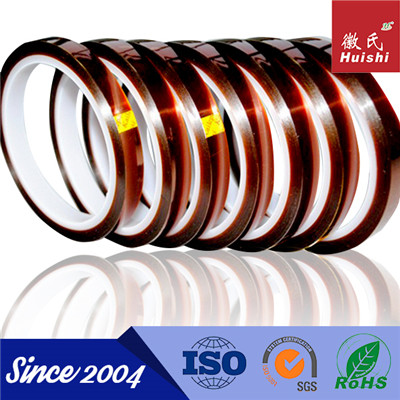

Polyimide tape

Polyimide tape is polyimide film backing with a high performance silicone adhesive. The product is designed for numerous high temperature masking applications

Price Consulting

Product DescriptionTechnical parametersDownload

  • Product Description:
    HS-201 Polyimide Tape is polyimide film backing with a high performance silicone adhesive. The product is designed for numerous high temperature masking applications, including the protection of printed circuit board gold finger contacts during wave soldering. It is used in electrical insulation application, meeting class H requirements. Standard rolls of polyimide film are available in different grades thicknesses. Custom adhesive backings, sizes, and shapes available upon request.

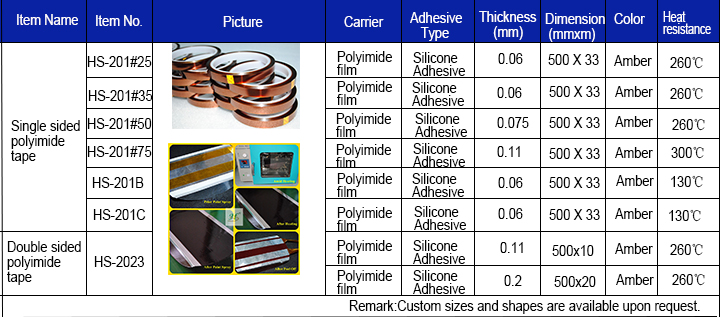

  • Kapton Polyimide Tape series:

  • Features ,Application and Industries:
    Features 1,Thin and conformable
    2,Wide operating temperature range up to 400 F
    3,Resistant to chemical
    4,Resistant to abrasion, punctures and tears
    5,Removes cleanly
    6,Excellent electrical insulation
    7,Flame Retardant
    Primary Application 1,Insulating
    2,Masking
    Application Description 1,Used for high temperature insulating & masking
    2,Protects circuit board gold finger contacts during wave solder or hot air leveling process
    Markets Served
    1,Automotive
    2,Electrical
    3,Electronics
    4,Manufacturing
    5,Transportation
